  • 07-13-2009 12:46 AM

    2 subs

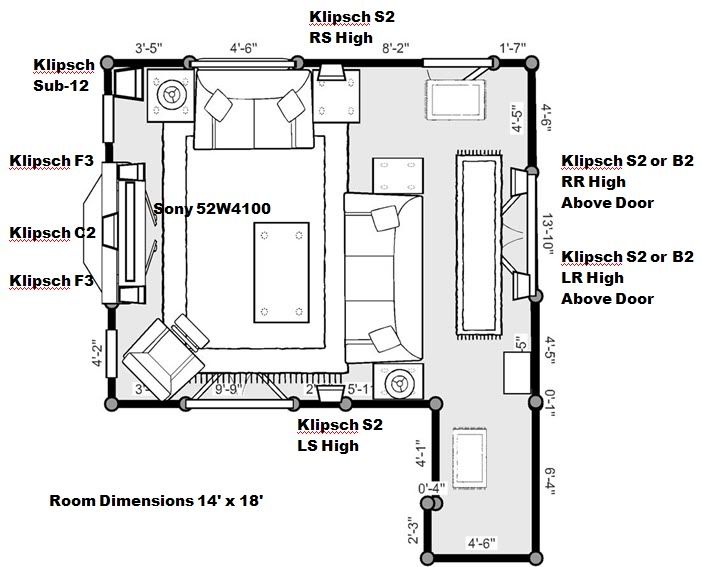

    I have the chance to get two subs for my home theater.  I have 3 sub in total and whatever i do not use in the main home theater will go to my quintet sl set.  Here is the setup for my home theater.

     I want to add either another Sub-12 or have the current sub -12 with a sub-10.  I would like some opions about connecting the subs to a reciever with only one sub out.  I have a Sony DG820 reciever but may change out for the DH800.  What do u guys think?

    Thanks

  • 07-13-2009 1:09 AM In reply to

    Re: 2 subs

    AppleJD:
    I would like some opions about connecting the subs to a reciever with only one sub out.


    Adding multiple subs would just require using a "Y" adapter from the receiver to split the signal to send to the two subs since the subs have their own amp to drive the speakers.



    Panasonic AE3000u Projector
    103" Elite Cinescope (2.35:1) Screen
    Yamaha RX-V1800
    Klipsch RF-83's (Cherry)
    Klipsch RC-64 (Cherry)
    Klipsch RB-35 Rears
    Velodyne HGS15 Sub
    Harmony One (on it's way)
    Klipsch Promedia 5.1
    PS3 (80 gig) for Blu-ray
    Wii

    Photo Gallery of Completed Theater Room
    My HT Build thread
  • 07-13-2009 9:27 AM In reply to

    Re: 2 subs

    It can be difficult to integrate two subs into a room but when dialed in correctly the results are well worth it.

    I'd go with another Sub-12 and wouldn't recommend pairing a Sub-10 with a Sub-12.

    -Mark
    --1992 Oak Oil Klipsch forté IIs with Bob Crites (BEC) networks & titanium diaphragms
    ---1994 Medium Oak Klipsch KG 3.5 surrounds
    ----SVS CS-Ultra
    -----Samson S1000 pro amp
    ------Marantz SR7001 THX Select2 receiver
    -------Sony PlayStation 3 (60gig)
    --------Nintendo Wii
    ---------Mitsubishi WD65C9 65" DLP HDTV - 1080p 120Hz
    ----------Klipsch ProMedia 2.0 in the office

  • 07-13-2009 12:28 PM In reply to

    Re: 2 subs

    Would you recommend placing the subs on either corner in the front?

  • 07-13-2009 12:50 PM In reply to

    Re: 2 subs

    Stick with the same model, and yes both up front and they don't necessarily need to be in corners though.  I would spread you mains out further and put them in the corners and put the subwoofers on the inside of them.

    ********************** All Heritage Home Theater **********************

    '87 KB-BR Klipschorn - Velodyne HGS-15 - '78 LS-BR La Scala - Velodyne HGS-15 - '87 KB-BR Klipschorn

    '80 C-WL Cornwall - '88 OO KG2 - '88 OO KG2 - '80 C-WL Cornwall

    Klipsch Heritage Series - Conveying Emotion Since 1946!
  • 07-13-2009 2:05 PM In reply to

    • Islander
    • Top 75 Contributor
    • Joined on 09-19-2006
    • Vancouver Island, BC, Canada
    • Posts 3,852

    Re: 2 subs

    Frzninvt:

    Stick with the same model, and yes both up front and they don't necessarily need to be in corners though.  I would spread you mains out further and put them in the corners and put the subwoofers on the inside of them.



    Finding the right spot(s) for a sub or subs can take a fair bit of experimenting.  The logical place for them is between the main speakers.  That will look symmetrical and not make the low bass sound separate from the mid-bass, but depending on your particular listening room, that may or may not be the best spot for them.  Try them in a few different spots, ideally near the main speakers, and see what sounds best to you.

    The important thing is to get a smooth bass response, with as few dips and peaks as possible.  Getting the loudest bass is less important, because you can adjust that with the sub volume level.  Sometimes when you find a spot that gives the strongest bass, there's a big peak at one particular frequency, and that's harder to correct.

    Pat on the Island
    510 JubScalas + Paradigm PW-2100, powered by Yamaha MX-D1 x 2,
    EQ'd by Electro-Voice Dx38, controlled by Yamaha RX-V750,
    fed by Technics SL-1400MK2 & Yamaha DVD-S550

    6.1 Surround: above plus 2 Heresy IIs & 2 Belles
  • 07-15-2009 3:41 PM In reply to

    Re: 2 subs

    Timing will be a problem, though you probably won't notice the latency.  Prolly not a problem daisy chaining 3 active subs, but no way on three passive.  Also, I agree not to mix sizes becuase the waves from the odd sub out may be in conflict with the other two if they aren't all firing/resetting in perfect unison.

    Thankful to get another day to do the right thing.
